Features

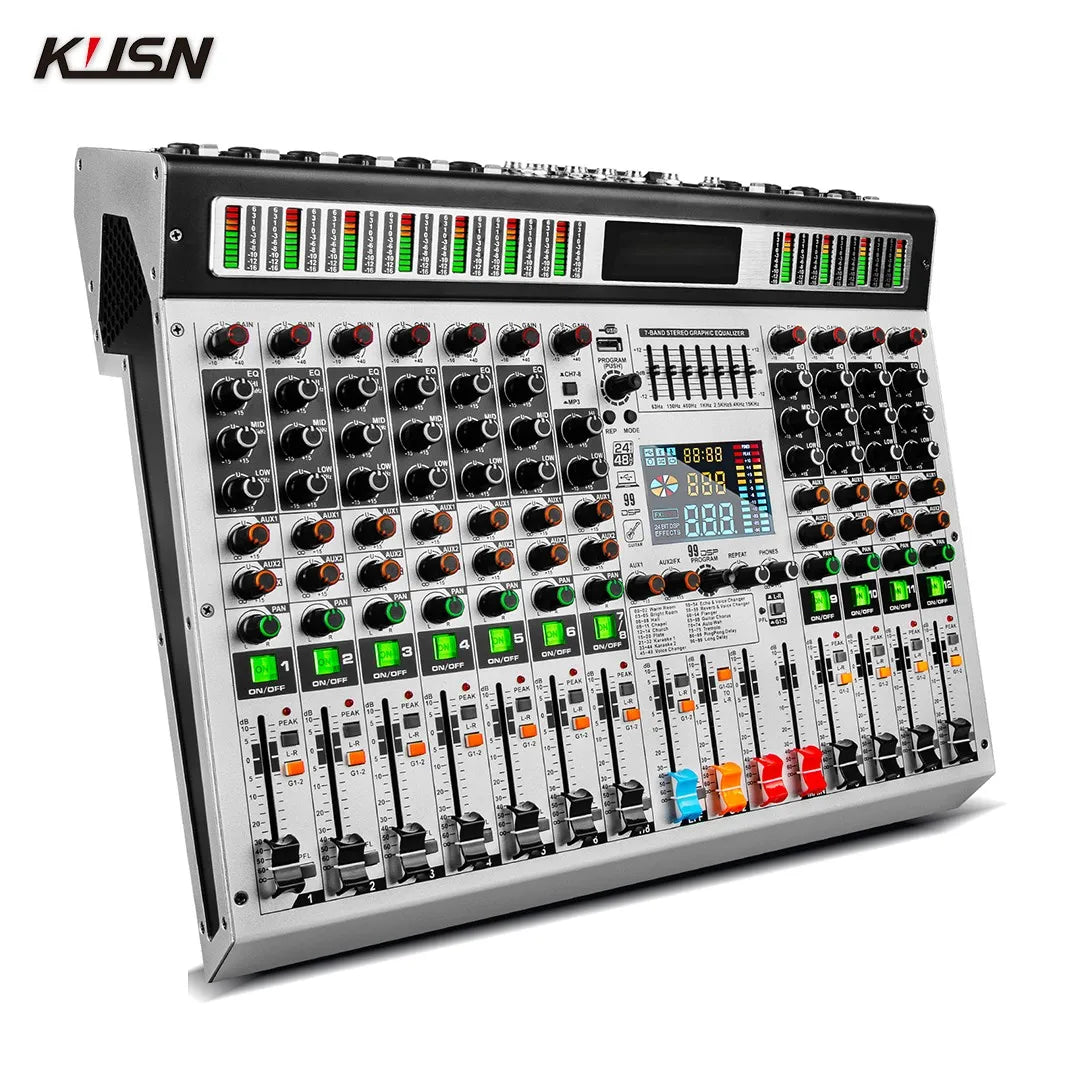

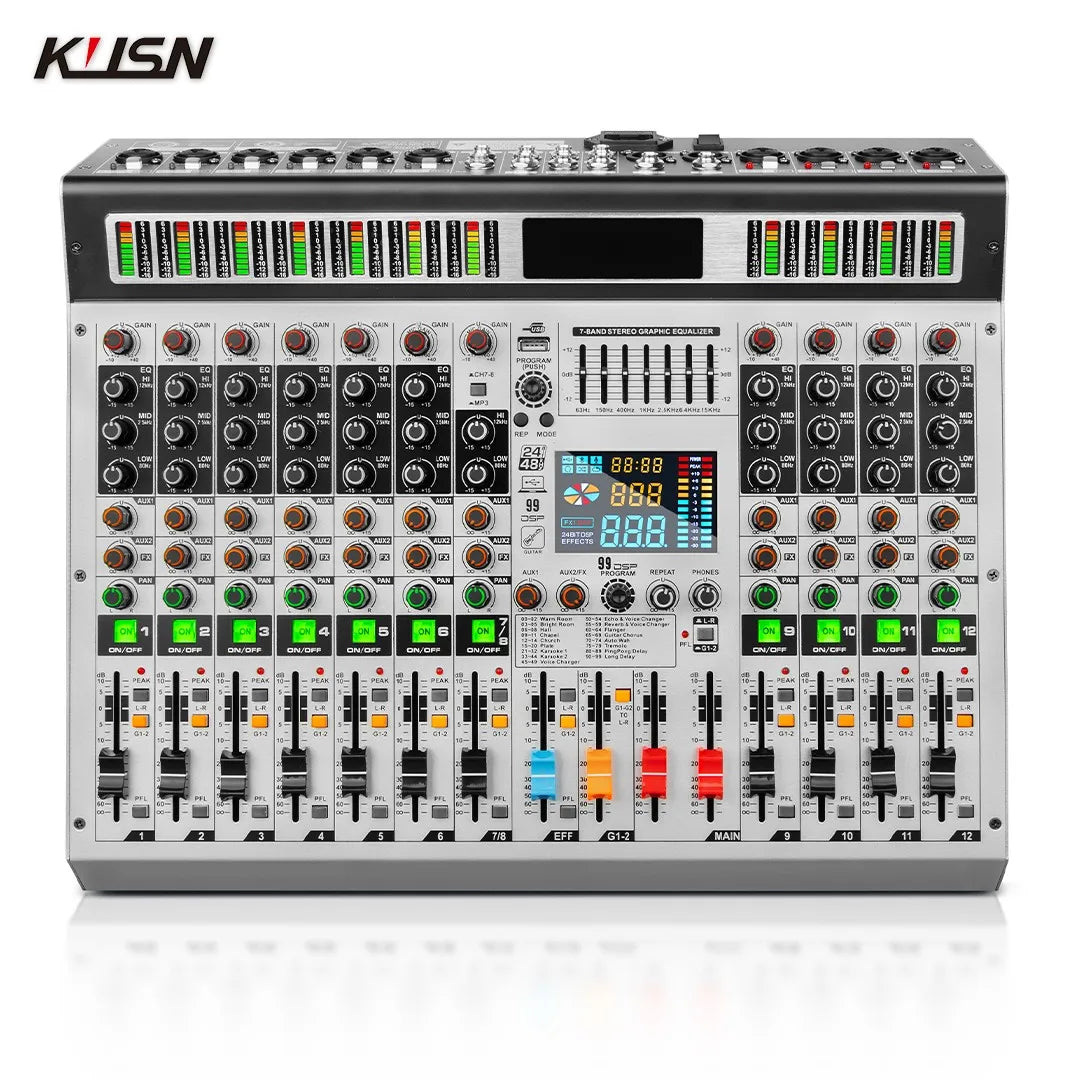

● 12-channel design with 10 mono MIC inputs + 1 stereo input

● Independent signal level indicator lights for each channel

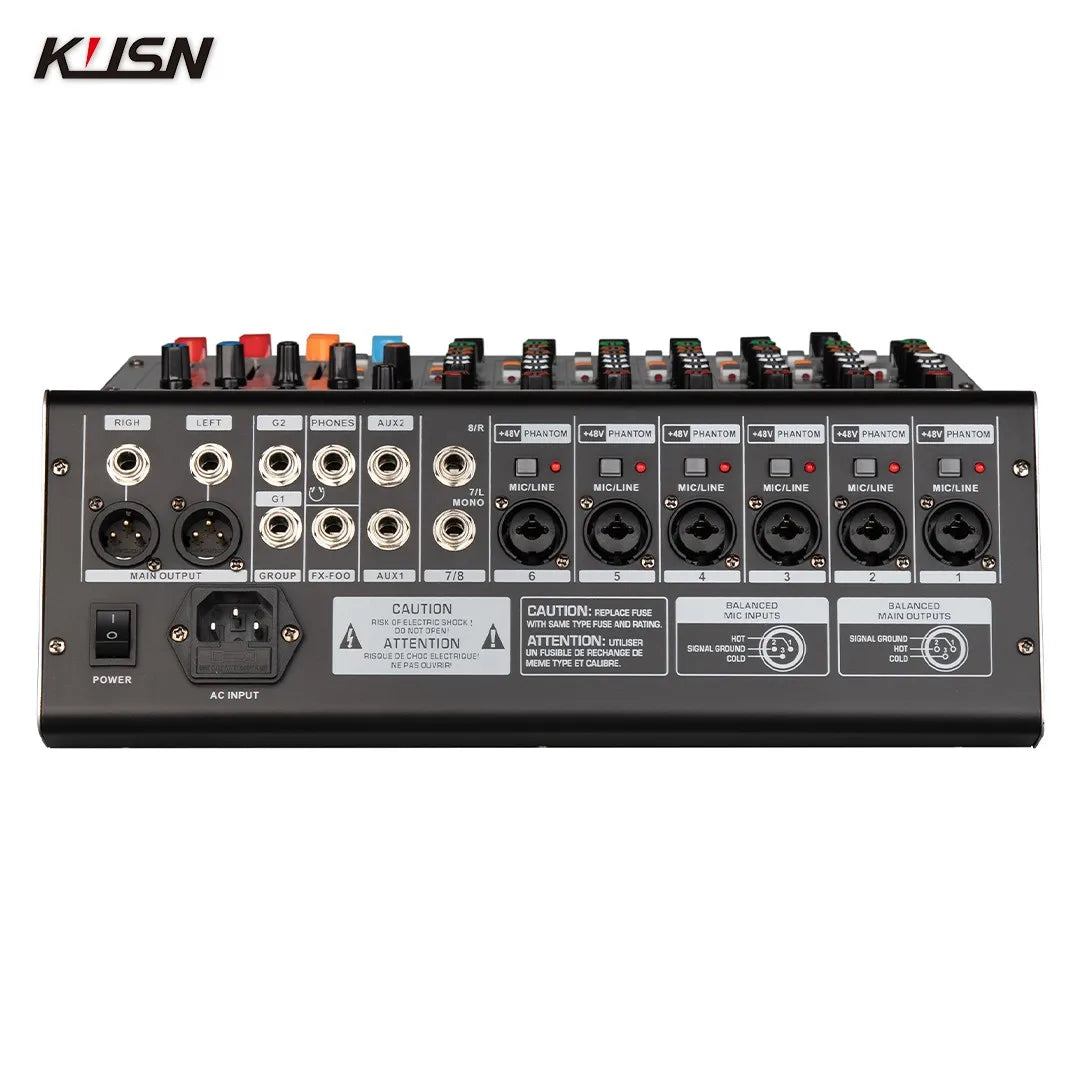

● Back-insert type line interface design, neat, attractive, and practical

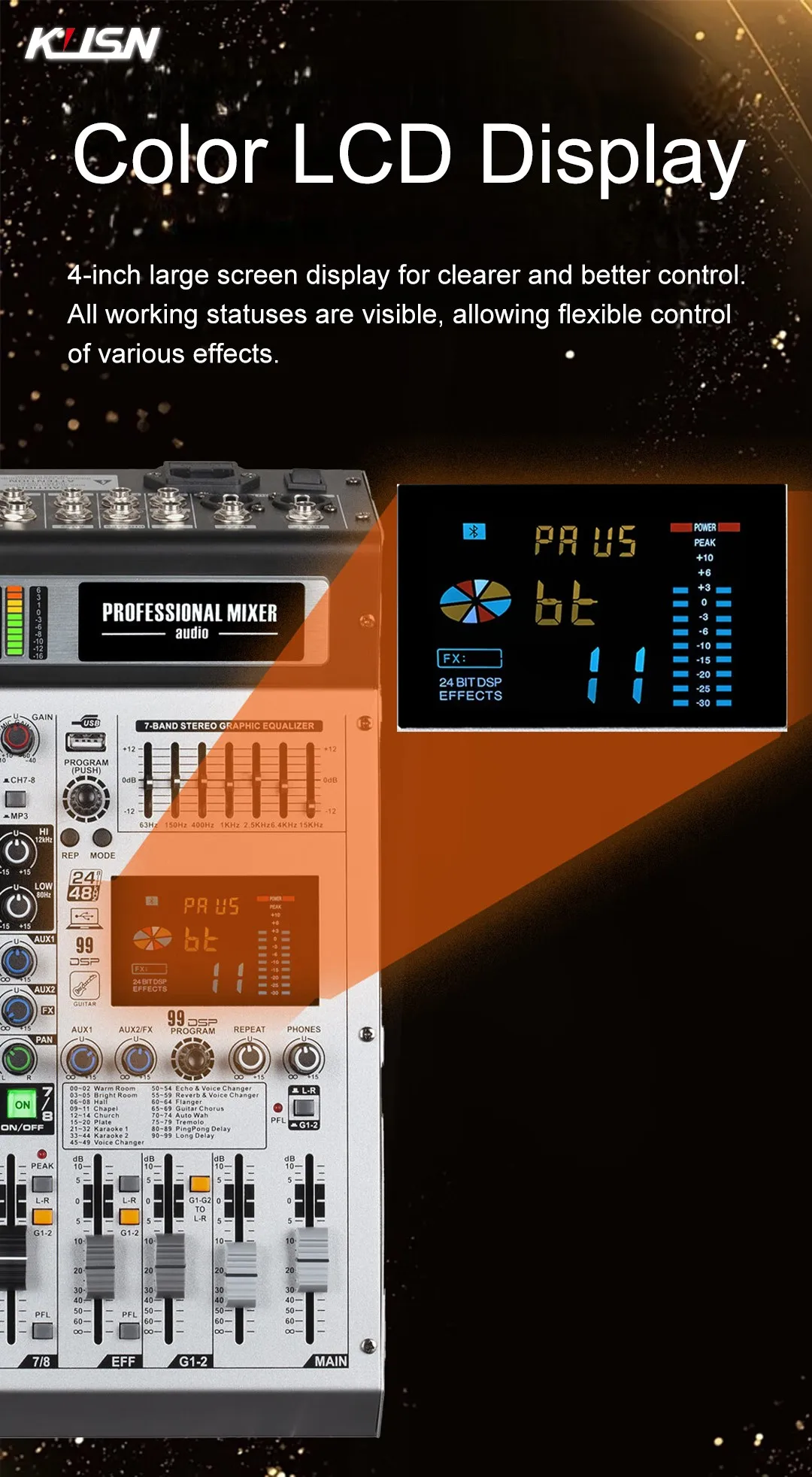

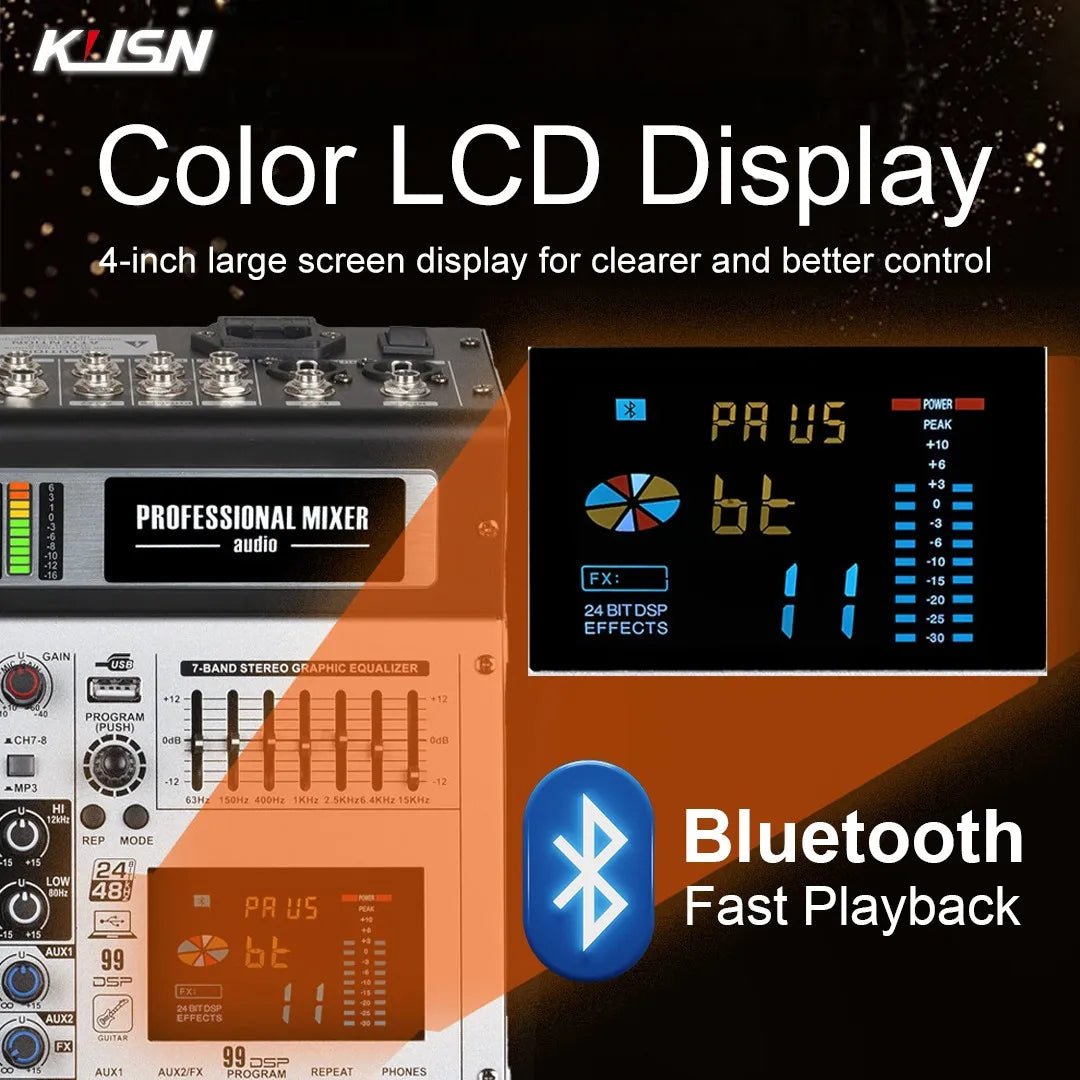

● 4-inch large screen display showing DSP effect channels, playback signal status, volume levels, etc.

● 3-band parametric EQ per channel, with frequency sweep on mono channels

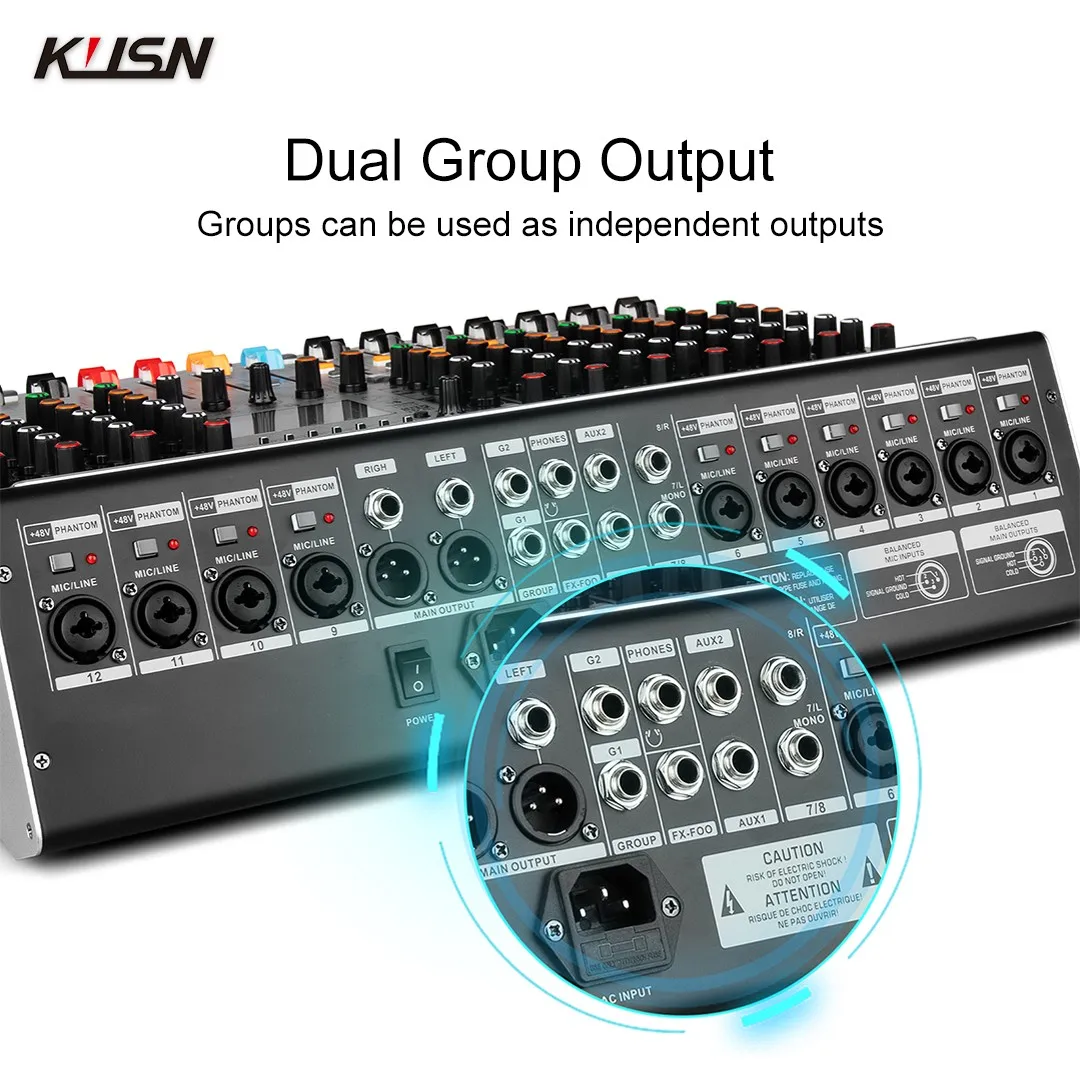

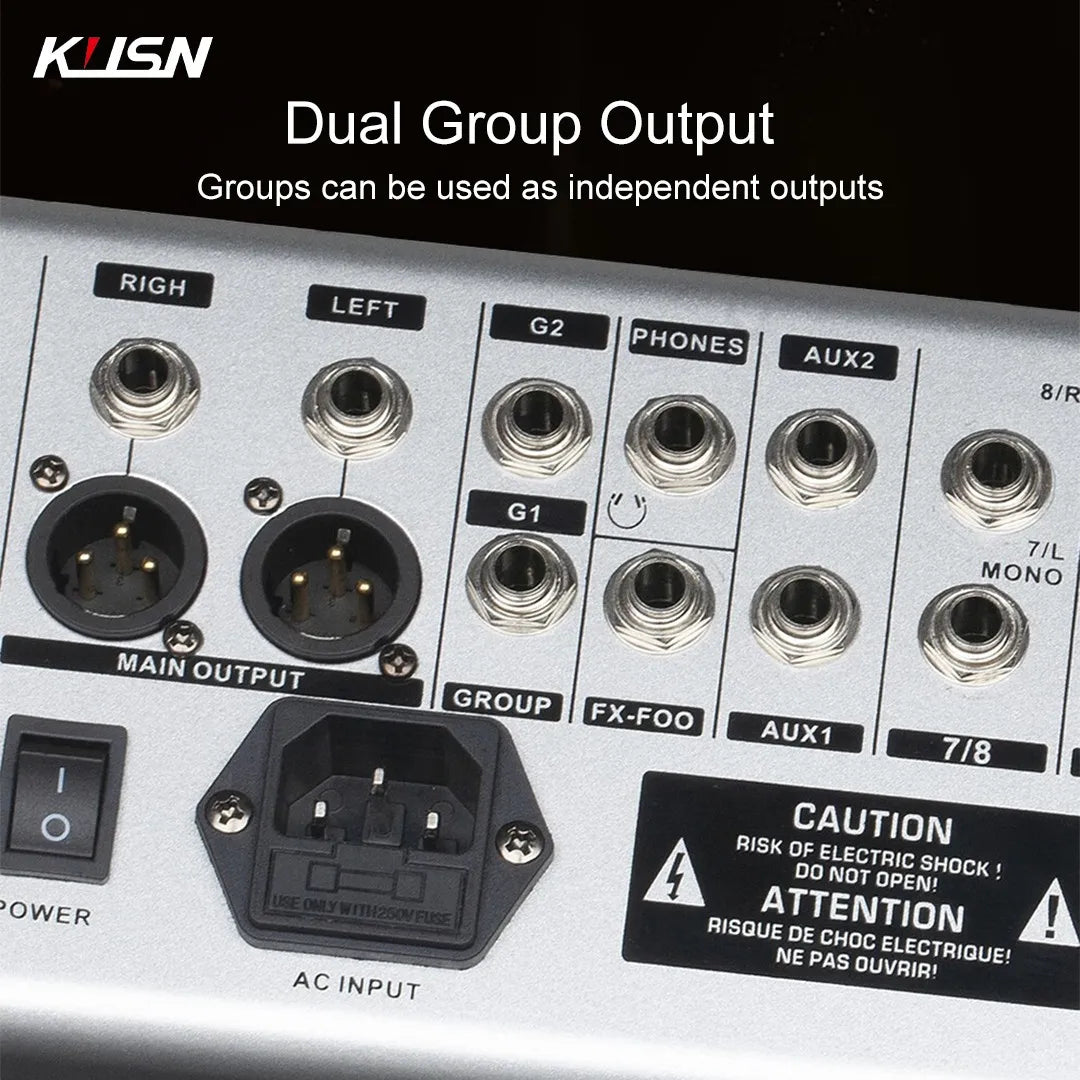

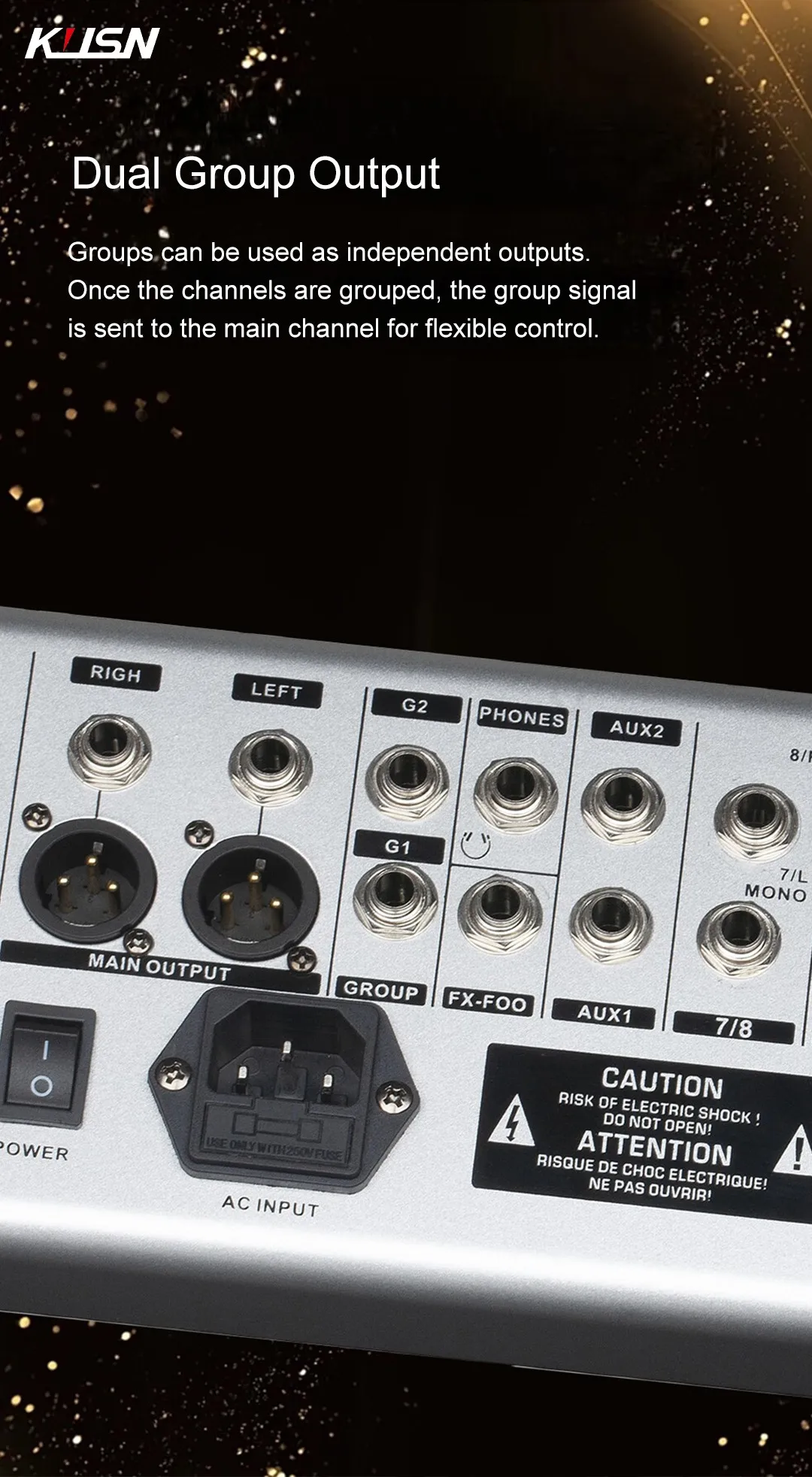

● 1 auxiliary group output, 1 stereo output, and 2 AUX bus outputs (including EFF)

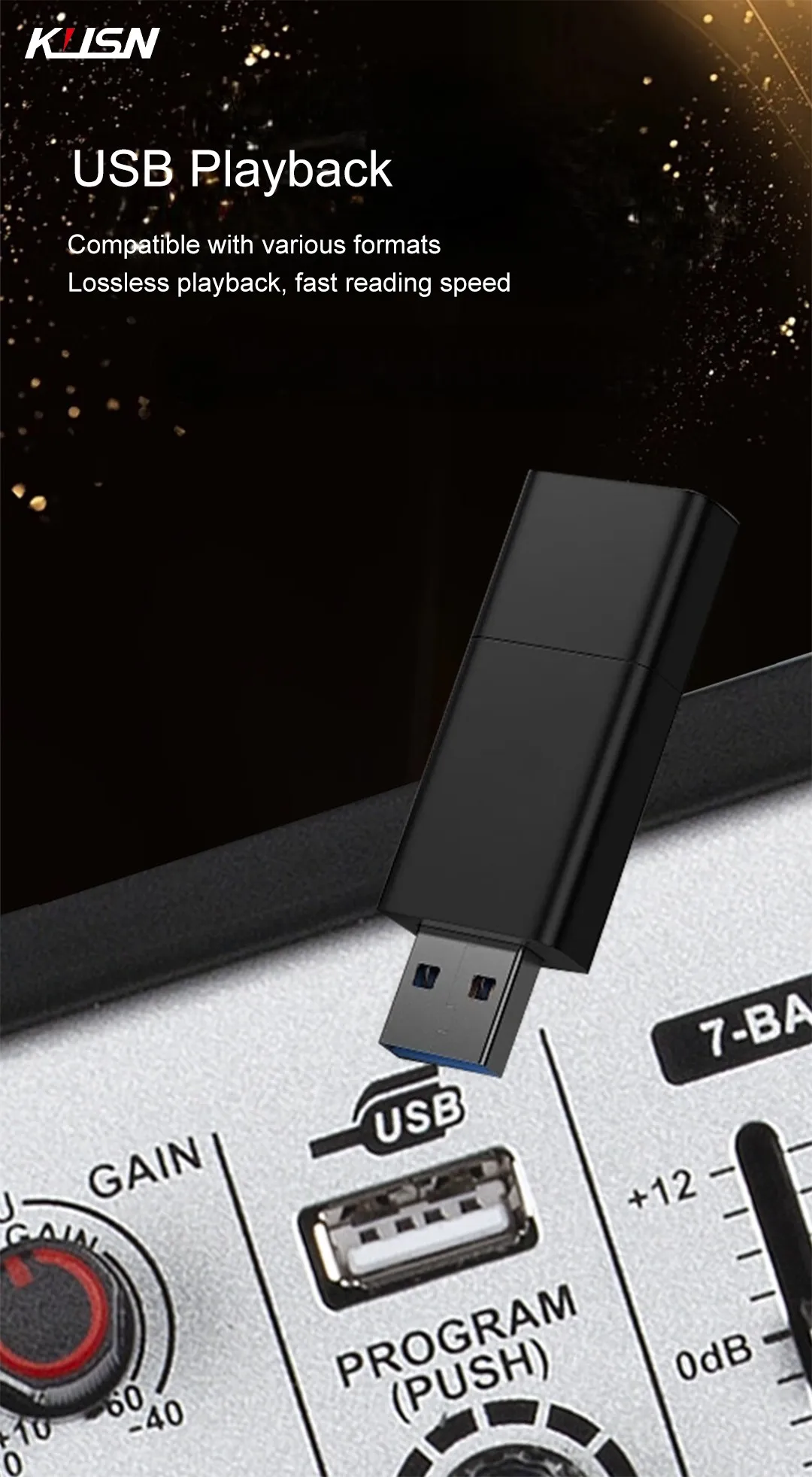

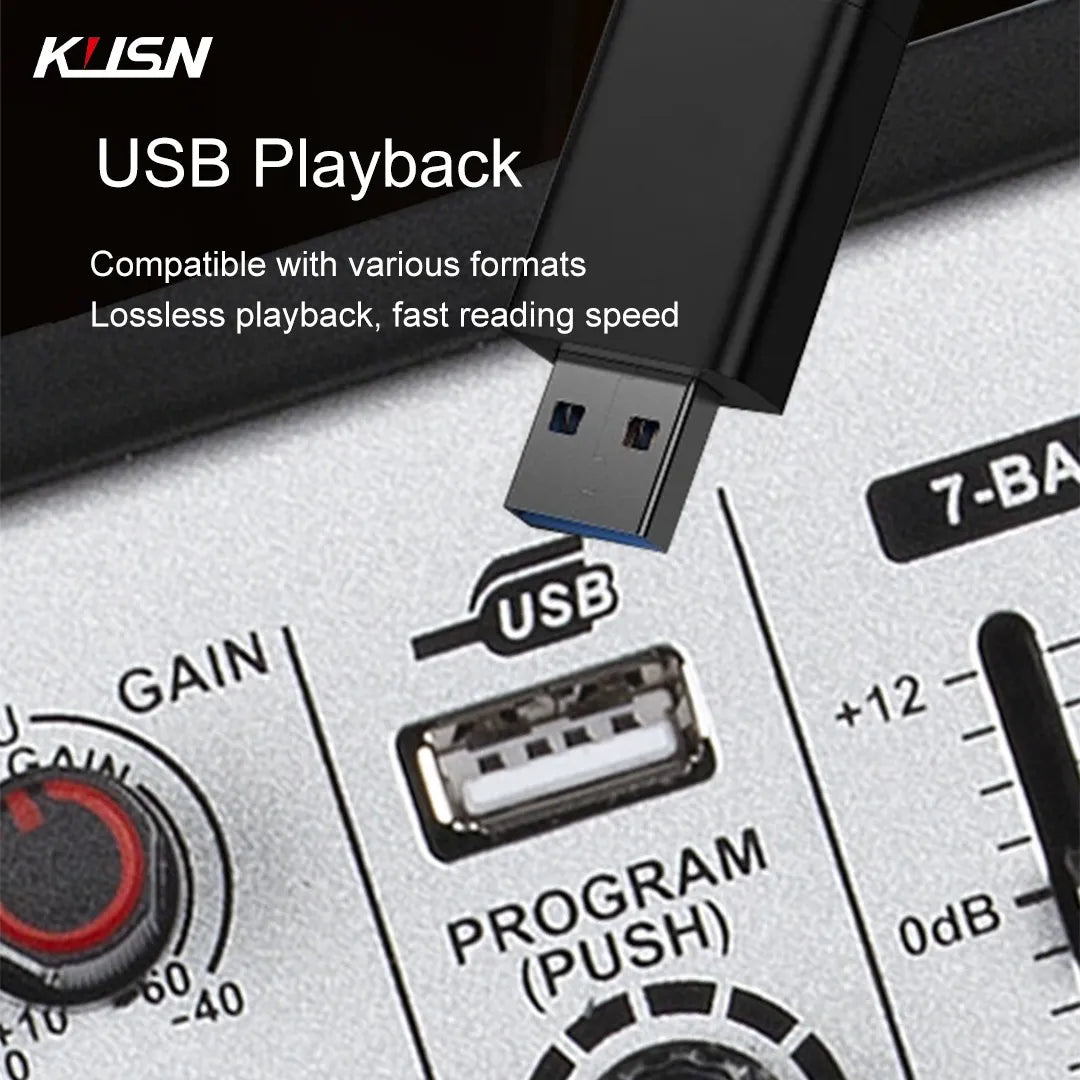

● Built-in 99 DSP digital effects, USB player, MP3 playback, direct USB recording, Bluetooth 5.0 receiver for playback, USB audio interface (connects to a computer to transmit audio to the mixer)

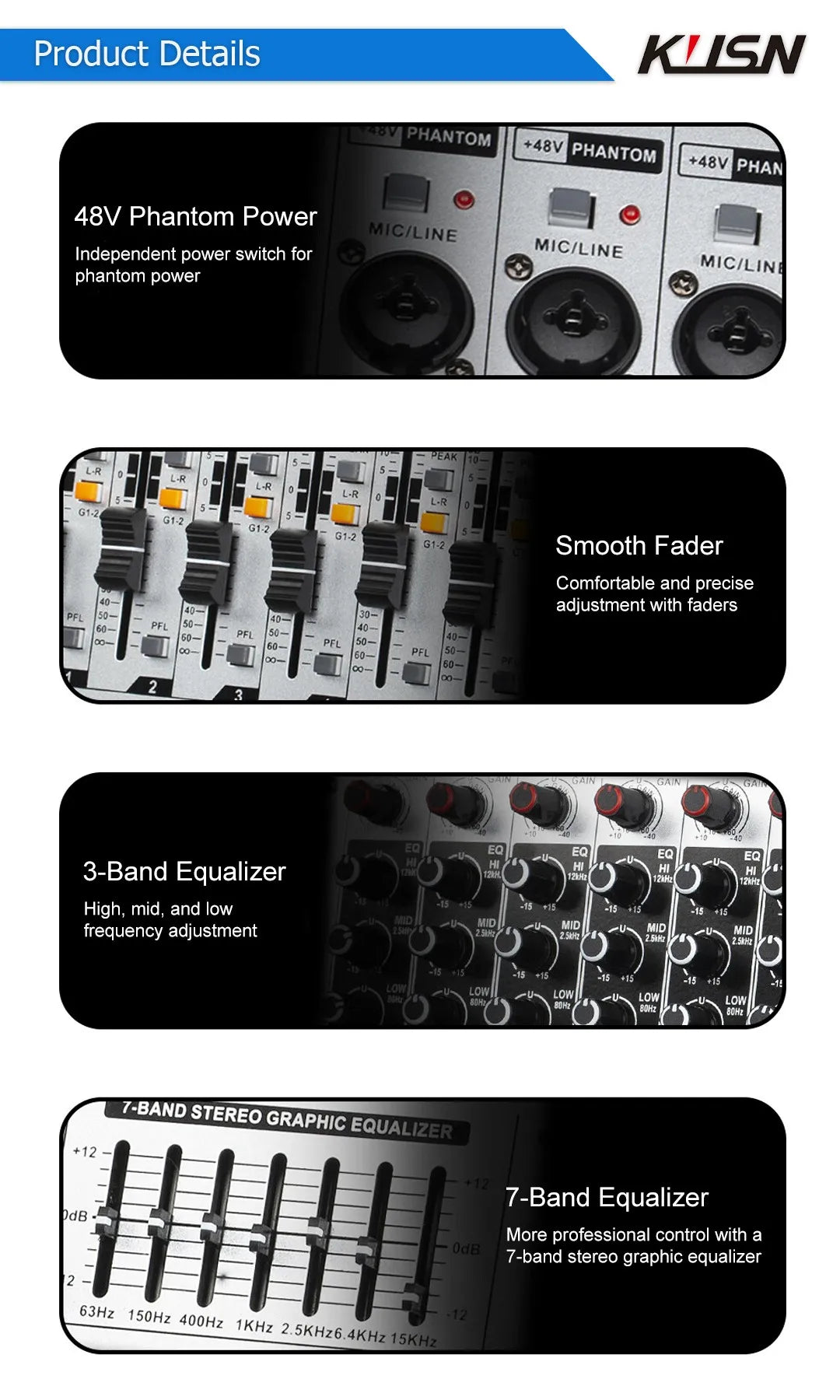

● Built-in 48V phantom power supply with independent switches per channel, main output with 7-band EQ, USB can switch with one stereo channel, USB level can be adjusted independently, MP3 can switch with one stereo channel, and MP3 level can be adjusted independently

● Each input channel has an ON switch, PEL headphone switch, main channel signal switch, auxiliary channel signal switch, and smooth, high-quality 100mm travel fader

Technical Specifications:

● Input channels: 12 channels

● Number of outputs: 2

● Phantom power: 48V

● Signal-to-noise ratio: >90dB

● Total harmonic distortion: 0.03%

● Maximum input level: 22dB

● Input sensitivity: MIC input: 60dB, LINE input: 20dB

● Equalization: 7-band graphic EQ on the main output

● High: 12kHz/±15dB

● Mid: 250Hz to 8kHz/±15dB

● Low: 80Hz/±15dB

● Frequency response: 20Hz to 20kHz (+3dB)

● Auxiliary send output level: 0dBu

● Line input gain range: 10dB to +20dB

● Power supply: 100-240V

● Headphone maximum input level: 19dBu/150Ω (+25dBm)

● Maximum output level: 19dBu (1kW THD=0.5%)

● Product dimensions (L×W×H): 440mm × 375mm × 120mm

● Product weight: 6kg
