SPECIFICATIONS

Color: Default is black, other colors can be customized

Customized: Yes

Max power: 900W

Packing size: 425*315*660mm

Peak power: 1800W

Product Name: 4 unit 2 way inverting line arry

Radio function: No

Rated Power: 450W

Sensitivity(1W@1m): 103dB

Shell Material: Wood

Shipping Weight: 23.5 kg

Size: 582*355*239.2

Weight(each): 20.95 kg

brand name: Deken

connection type: Other

dimension: W582mm x D355mm x H239.2mm

format: ---

model number: SHOW L208

output power: 450W

place of origin: Guangdong, China

power source: Other

snr: ---

storage: ---

the body material: Metal

warranty: 3 months ~ 1 year

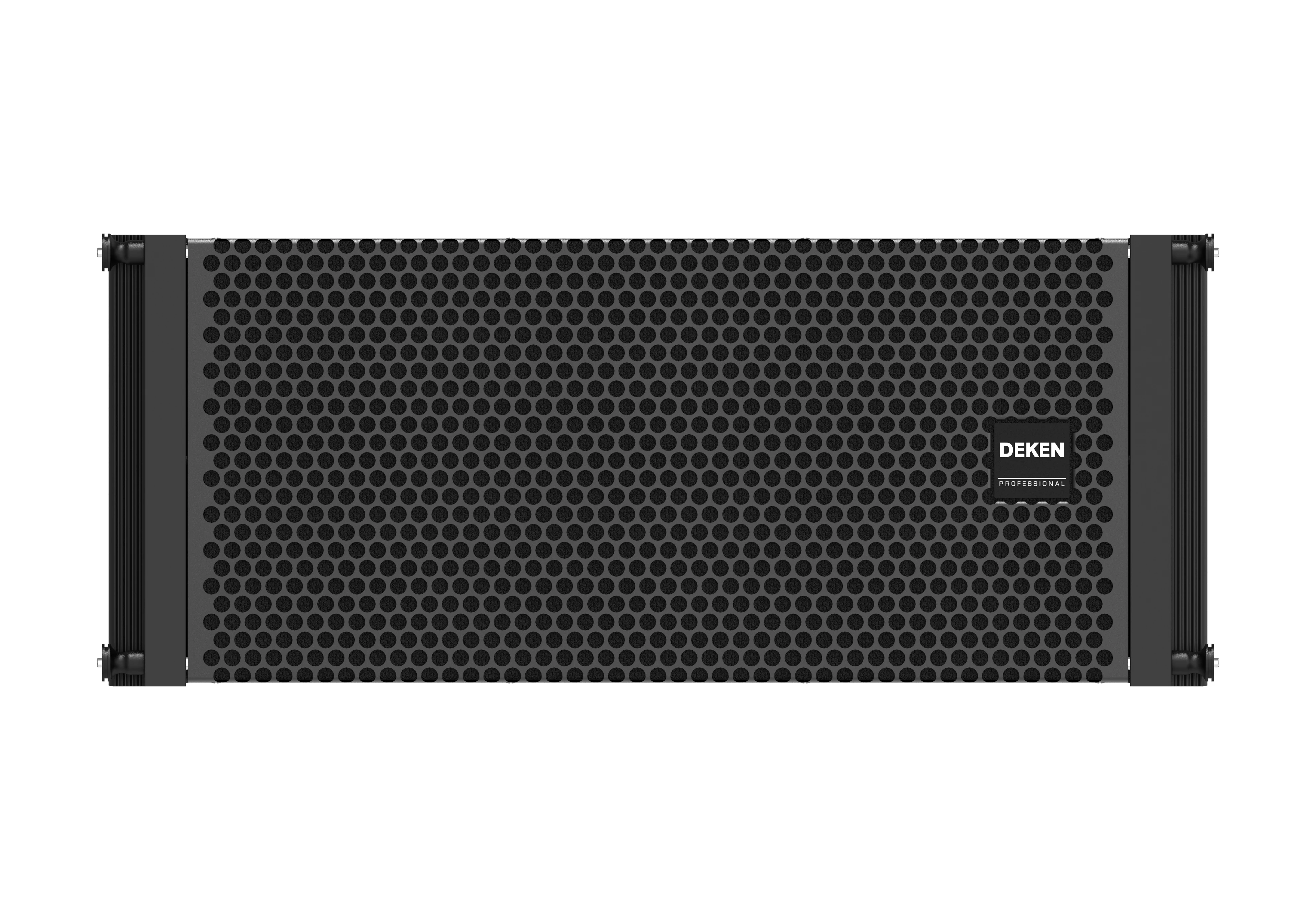

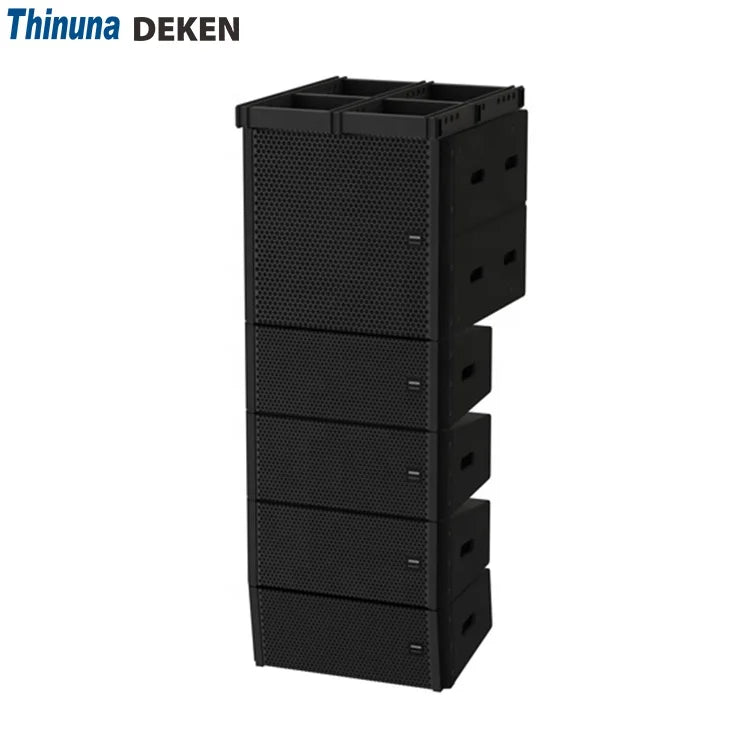

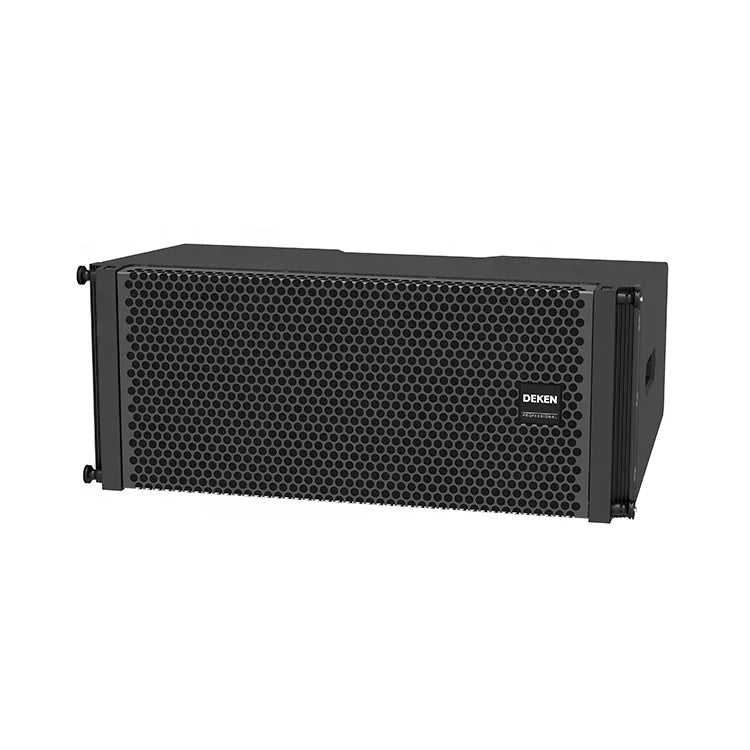

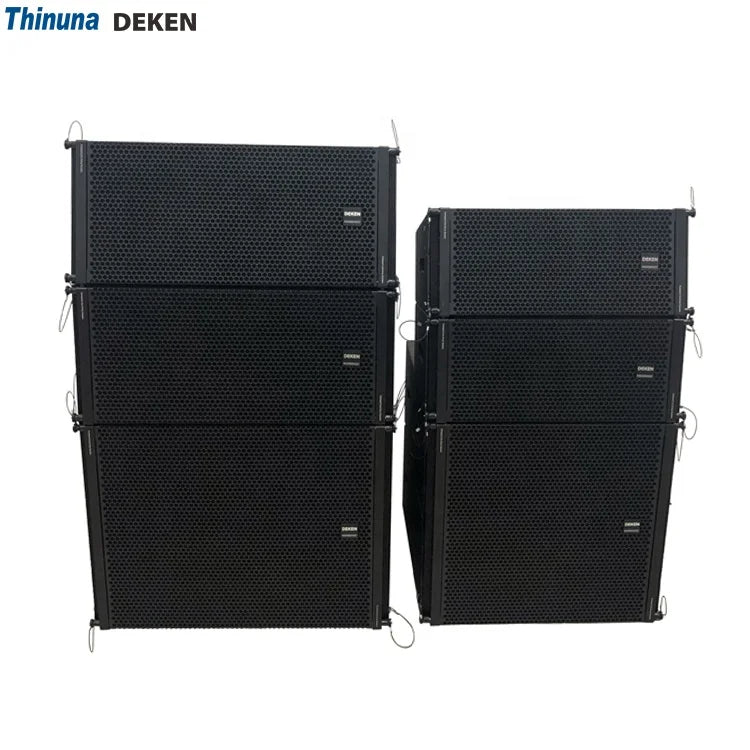

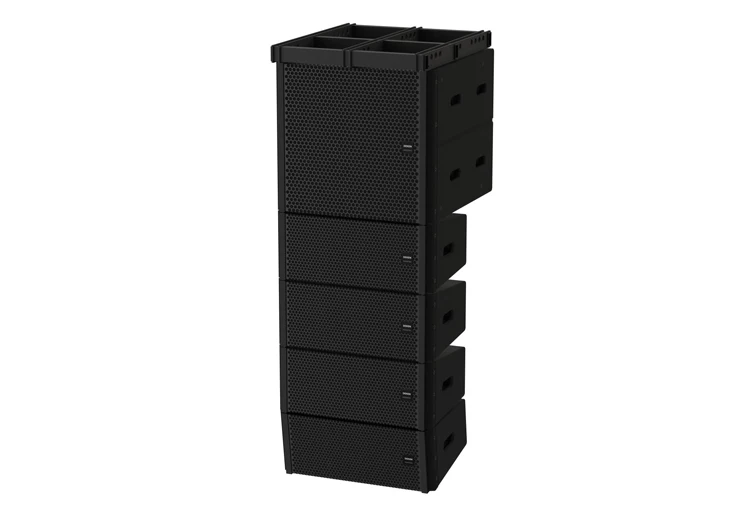

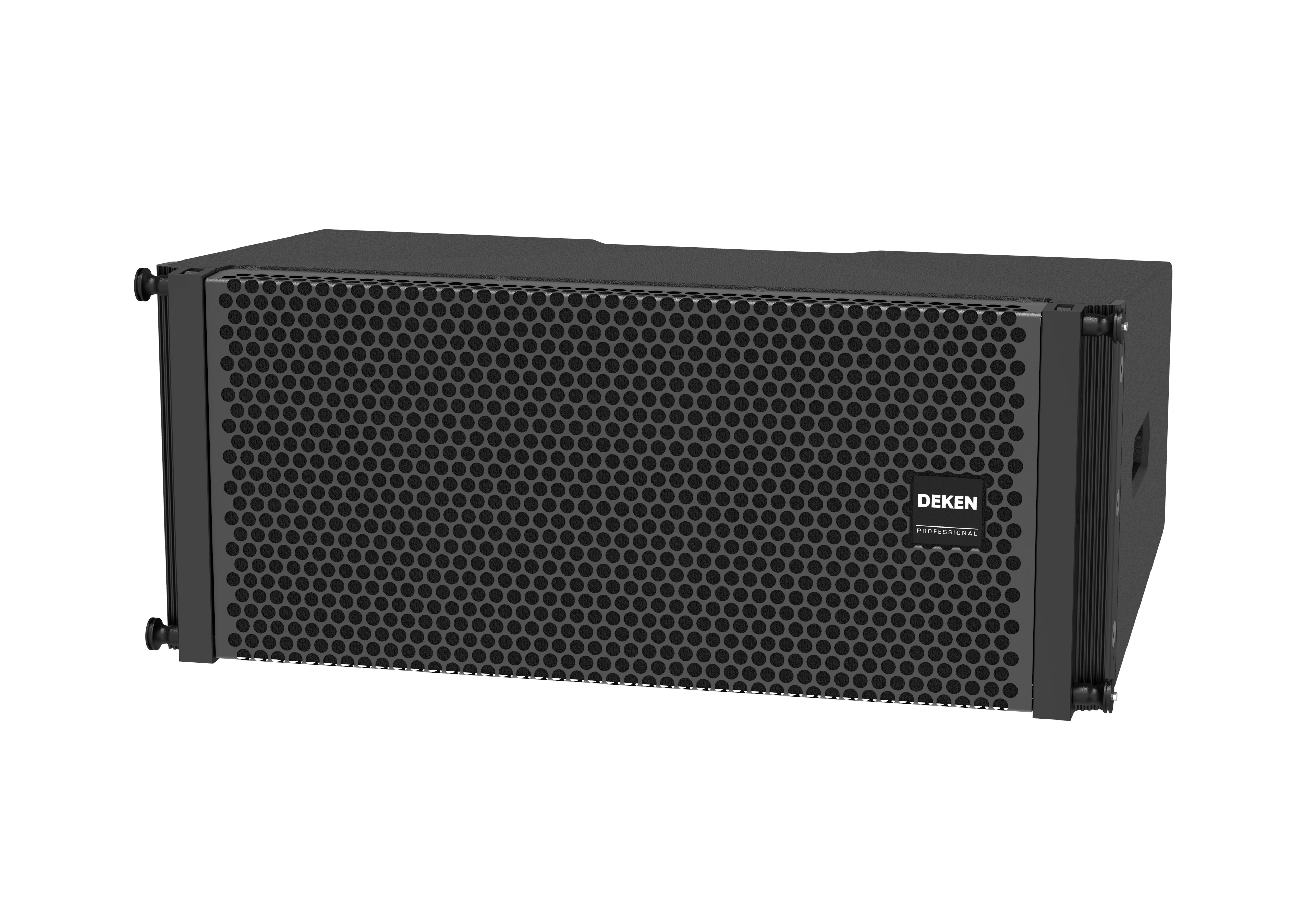

SHOW L208 Dual 8" line array professional stage speaker audio system sound outdoor indoor pa passive line array speakers

Product Description

Application

Specification

System type	4 unit 2 way inverting line array
Rated power	450W
Max power	900W
Peak power	1800W
Nominal impedance	16 Ω
Recommended power amplifier output rating	500W-800W@ 8 Ω
Nominal sensitivity（1W@1m）	103 dB
Max SPL（Pmax@1m）	130dB@450W (133dB@900W)
Frequency response(-10dB)	65Hz-20KHz
Nominal coverage pattern（-6dB）	Each speaker 90ºH*8ºV
（Note: The vertical coverage Angle varies depending on the Angle and curvature of the line array speakers）
Adjustable Angle	0°～ 11 °，Minimum adjustment Angle 1 °
Suggested number of combinations	≥4 piece
Number of parallel connections	≤4  piece
Speaker component	LF driver 8″（200mm diameter 50 mm voice coil）×2 HF driver 1.4″（36mm voice coil）×2 High-frequency waveguide horn 1″（25 mm）×2
Crossover modes	Passive

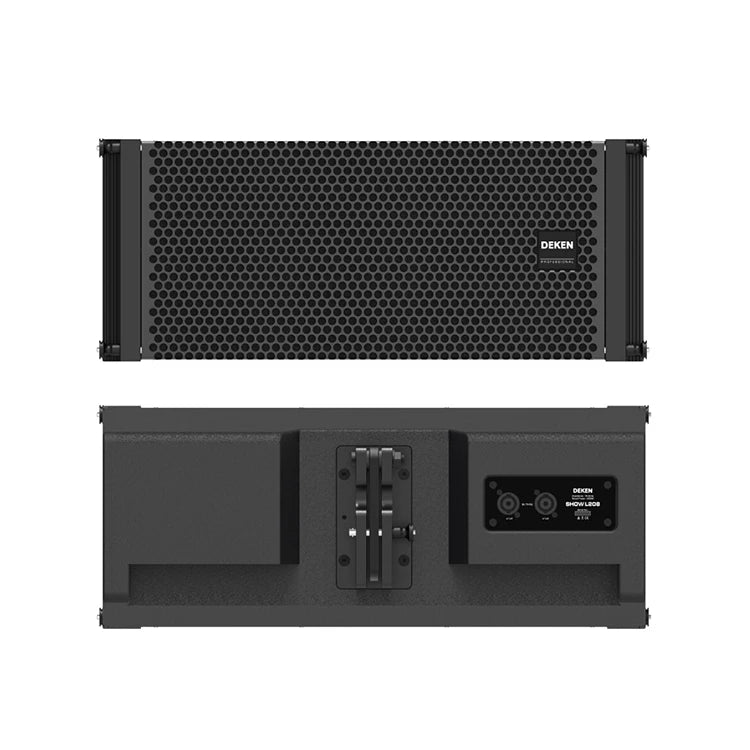

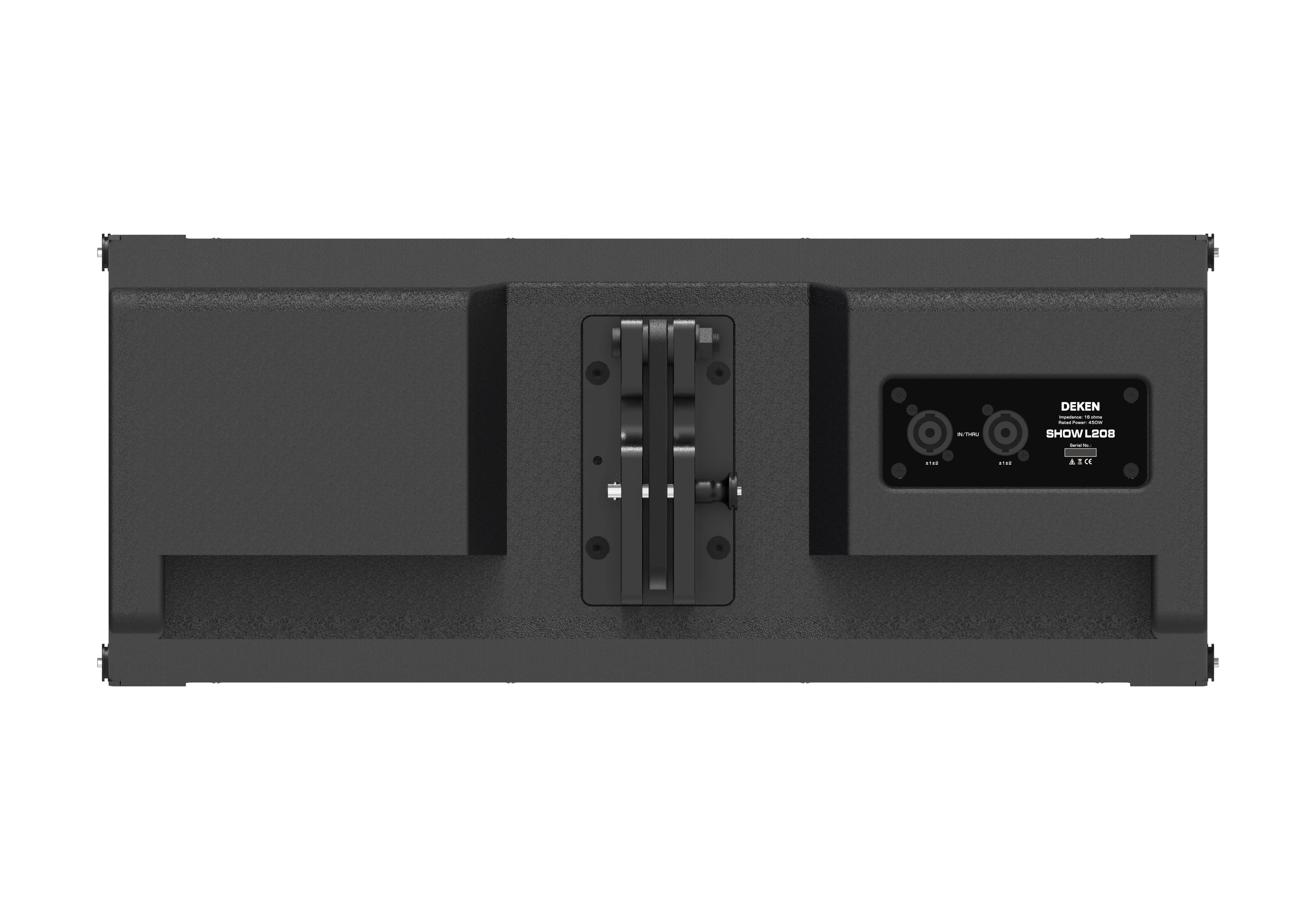

Connector	Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
Enclosure	15mm（0.6″）High quality birch plywood
Hanging hardware: professional adjustable Angle hanging parts
Color	Default is black, other colors can be customized

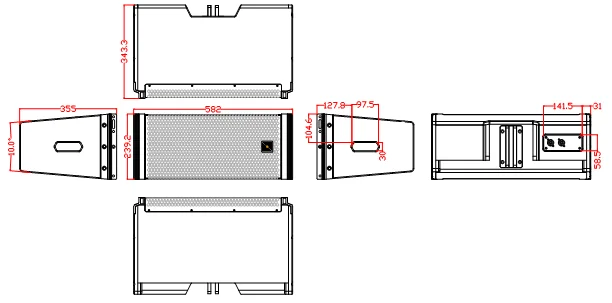

Dimensions	W582mm x D355mm x H239.2mm
Weight(each)	20.95 kg
Shipping weight	23.5 kg

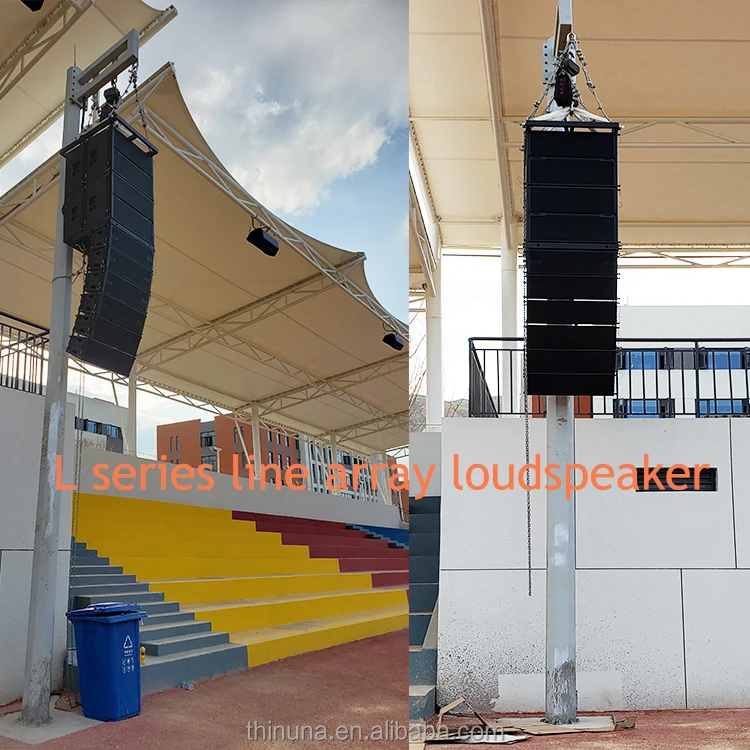

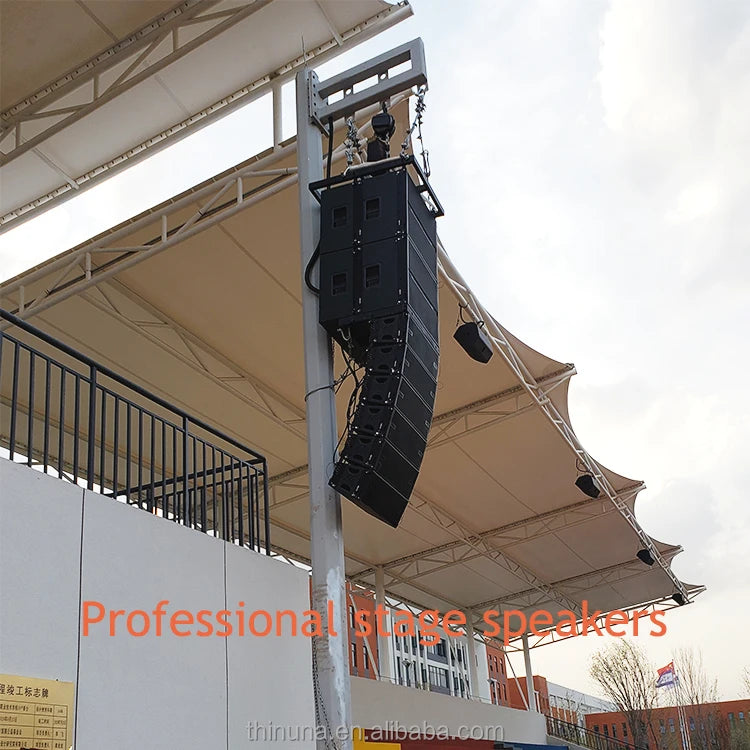

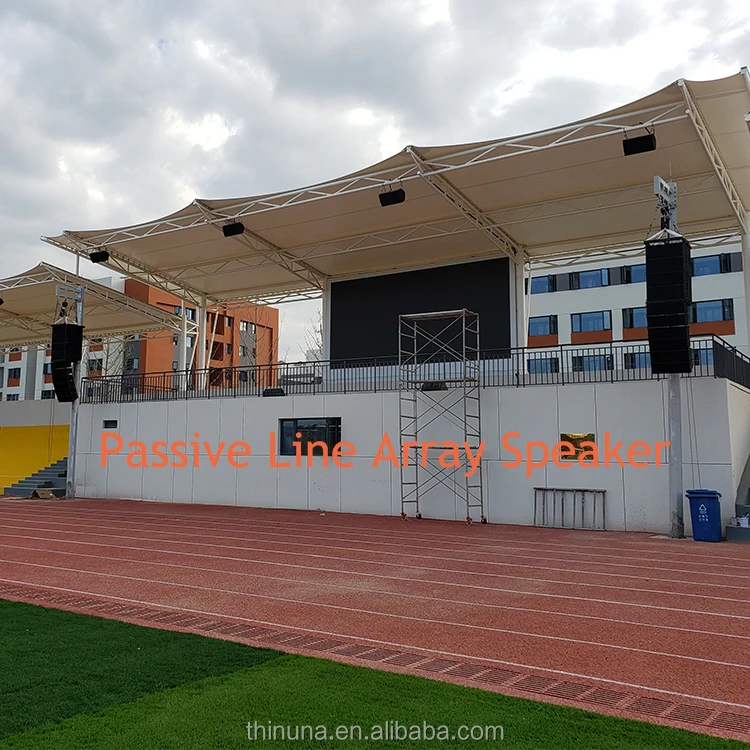

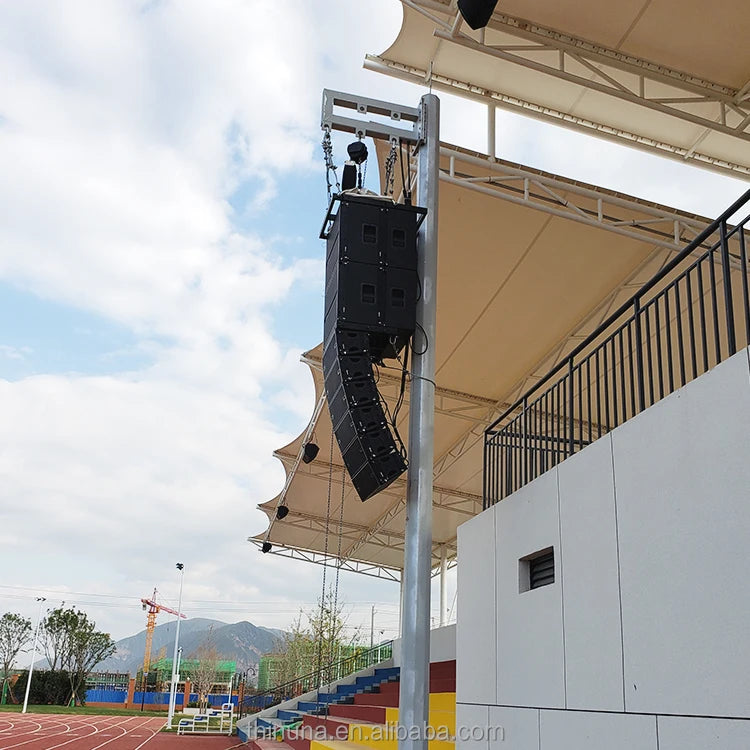

Reference applications:	Performance, theatre, ballroom, auditorium
